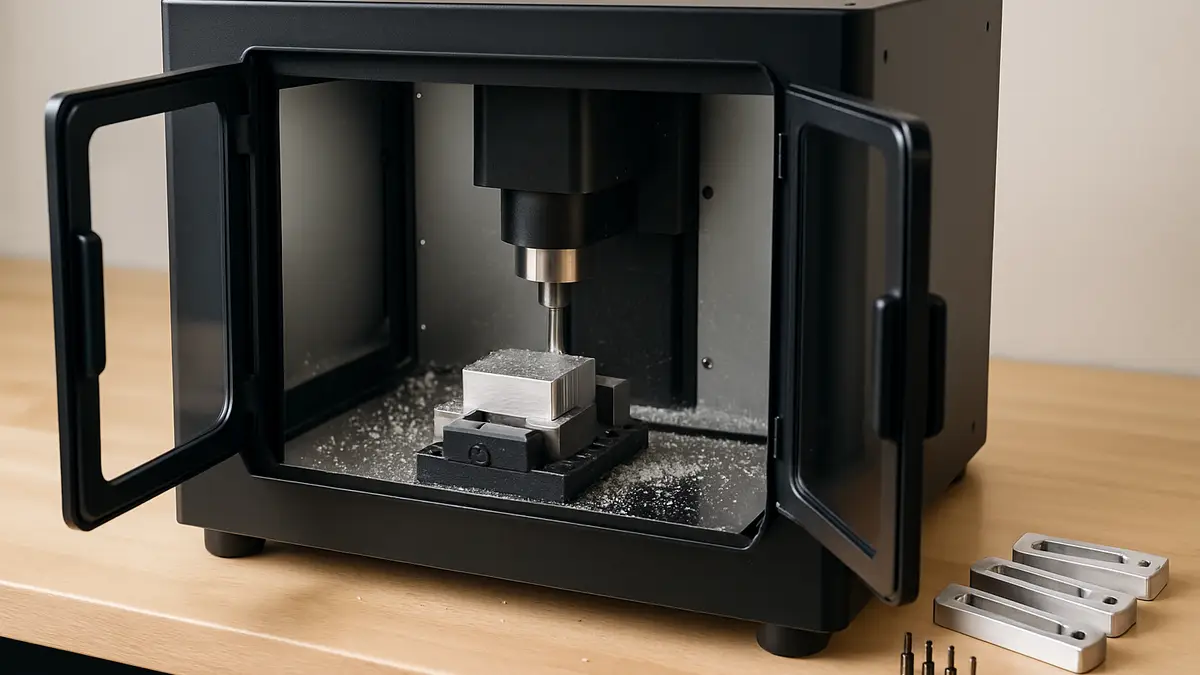

Desktop CNC Mill: Machines That Can Cut Aluminum

A desktop CNC mill is a compact, computer-controlled milling machine that fits on a bench and cuts small parts from aluminum, brass, plastics and wood by moving a spinning end mill through the material. It trades the large work area of a CNC router for stiffness, an enclosure and a spindle suited to metal.

We did not machine parts on these mills. The specs and prices below come from Makera’s, Carbide 3D’s, SainSmart’s and Langmuir Systems’ own product pages and stores on October 6, 2026. Where a maker publishes a cutting limit, we quote it.

Which desktop CNC mills can cut aluminum?

Every machine in this table lists aluminum as a supported material. They differ in how fast they remove it: spindle power, top RPM, drive stiffness and tool changing set the pace, and price follows those four.

The Genmitsu is a CNC router, not a mill, and is here as the low-cost comparison: SainSmart markets its 710 W router for aluminum, but the open lead-screw frame is lighter than the enclosed mills. The best CNC router for hobbyists page covers it among routers.

What is the difference between a CNC router and a desktop mill?

A CNC router is built for area and speed in soft materials: a long gantry, a high-RPM trim router and a frame sized for sheets of wood. A mill is built for stiffness in metal: a short, heavy structure, a spindle with better bearings, and a small work envelope.

Desktop mills sit between the two. Most, including the Carvera and Nomad, still use a moving gantry like a router, but in a much shorter, enclosed frame with ball screws and linear rails, which is where their extra stiffness comes from. They are far lighter than a shop knee mill or a gantry mill like Langmuir’s MR-1, so they cut metal with light passes rather than heavy ones.

How well do desktop mills cut aluminum?

Desktop mills cut aluminum well enough for brackets, enclosures, fixtures and small mechanical parts, but in shallow passes. Makera’s Z1 guidance gives a typical single-pass depth under 1 mm in aluminum, recommends a single-flute end mill, and lists about 50 mm as the maximum recommended aluminum thickness.

Spindle power sets how hard you can push. Carbide 3D says the Nomad 4’s 1.2 kW VFD spindle is nearly 10 times the power of the Nomad 3’s 130 W motor, and pairs it with ball screws on every axis instead of lead screws. Makera’s Carvera and Carvera Air use 200 W spindles, so they depend on light, fast passes and adaptive toolpaths.

Top RPM matters too, because small cutters need speed to keep a usable feed rate. Feed equals RPM times flutes times chip load. With a single-flute cutter at an example chip load of 0.001 in per tooth, 13,000 rpm gives 13 in/min, and 24,000 rpm gives 24 in/min. To get starting numbers for your cutter and machine, use the laser and CNC settings calculator in CNC mode with aluminum 6061 and a single-flute O-flute bit; it starts conservatively at a depth of cut of a quarter of the cutter diameter.

Can a desktop CNC mill cut steel?

Steel is outside what these machines are sold for, with one partial exception. Carbide 3D lists only aluminum, brass and copper as metals for the Nomad 3 and Nomad 4. Makera does not recommend the Z1 for ferrous metals such as steel, stainless and titanium unless you have prior machining experience.

Makera describes the Carvera as able to take on “light-duty stainless steel and titanium alloy projects”. Treat that as small, shallow work, not production steel parts. If steel is the main job, look at a heavier machine: Langmuir’s MR-1 CNC gantry mill starts at $5,195 and is marketed for aluminum and mild steel. For cutting steel profiles from sheet, a CNC plasma table is cheaper per part.

Do you need an automatic tool changer?

An automatic tool changer is worth paying for if your parts need three or more tools, such as a roughing end mill, a finishing end mill, a drill and a chamfer bit. Without one, each tool swap means stopping the job, changing the cutter and re-measuring its length.

The Makera Carvera is the only machine here with a true automatic changer (6 tools) plus a wireless probe for automatic tool measuring. The Carvera Air and Makera Z1 use a quick-change system that speeds manual swaps, and the Nomad machines use standard ER collets with Carbide 3D’s BitZero probe for setting zero. For one-tool parts, such as most engraving and simple profiles, manual changes cost little time.

What else do you need for a desktop CNC mill?

A desktop mill needs end mills, workholding and a way to deal with chips before it makes a first part. These extras add $200 to $800, depending on which you choose.

Which cutter profile does which job is covered in the CNC router bits guide; the same profiles apply to desktop mills in smaller sizes. For rotary work on a CNC router rather than a mill, our 4-axis CNC guide compares the add-on kits.

What software comes with a desktop CNC mill?

Each maker bundles software that runs its machine, and most also work with general CAM programs. The Nomad 4 ships with Carbide Motion, Carbide Create, MeshCAM for Nomad, Carbide Copper for PCB work and an Alibre Workshop license; Carbide 3D notes MeshCAM’s output only runs on the Nomad.

Makera machines use Makera Studio and the Makera Controller, and Makera lists Fusion and VCarve among other supported CAM programs. Fusion is free for personal, non-commercial use. The CNC router software comparison explains how CAD, CAM and machine control fit together.

How much does a desktop CNC mill cost all in?

Expect the machine price plus $200 to $800. A Carvera Air with Makera’s 26-piece bit set and a $99 vise comes to about $2,560; a Nomad 4 with the Nomad starter pack and a low-profile vise is about $5,710 before dust collection.

The Nomad 4 runs on a standard 110 V outlet (12 A maximum, non-GFCI per Carbide 3D) and ships by freight within the US only. For a wider comparison with routers and plasma, see what a hobby CNC setup really costs.

Who is a desktop CNC mill not for?

A desktop CNC mill is not for woodworkers who want 2 x 4 ft signs, cutting boards or furniture parts: the largest work area here is 360 x 240 mm. A CNC router gives you several times the area for less money.

It is also not for anyone who needs steel parts in quantity, deep fast cuts, or industrial tolerances on large parts. Those jobs belong on a heavier gantry mill or a shop machine. If your parts are small and mostly aluminum, brass, plastic or PCB, a desktop mill is the right size.

Sources: Makera Carvera, Carvera Air and Z1 product pages, Makera store, Carbide 3D Nomad 4 and Nomad 3 (Carbide 3D store), Carbide 3D Nomad page, SainSmart Genmitsu 4040-PRO MAX, Langmuir Systems store (MR-1). Prices and specs checked October 6, 2026.
